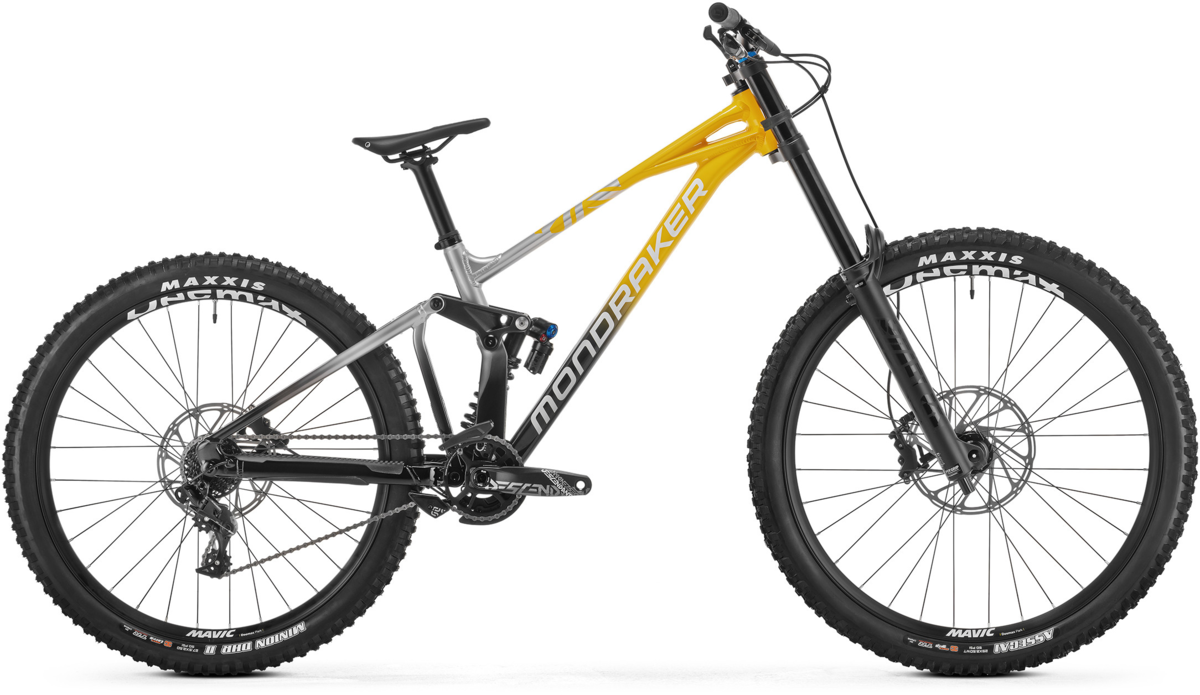

Mondraker Summum R Mullet - 2025

Mondraker Summum R Mullet
  • Color: Yellow/Black/Silver
$3,499.30
$4,999.00
Color: Yellow/Black/Silver
Size: Large
Wheel Size: 29-inch front / 27.5-inch rear
Please select options Unavailable

Details

Downhill bike with MX wheels - Front: 29-inch, Rear: 27.5-inch

Sizes:
Frame sizeSmallMediumLargeX-Large
Seattube length 400 mm 400 mm 400 mm 400 mm
Toptube length 576 mm 596 mm 621 mm 646 mm
Bottom bracket drop -5 mm -5 mm -5 mm -15 mm
Bottom bracket height 350 mm 350 mm 350 mm 350 mm
Chainstay length 450 mm 450 mm 450 mm 450 mm
Seat tube angle 69° 69° 69° 69°
Effective seattube angle 77° 77° 77° 77°
Headtube angle 63.5° 63,5º 63,5º 63,5º
Fork Offset 58 mm 58 mm 58 mm 58 mm
Wheelbase 1256 mm 1270 mm 1301 mm 1326 mm
Headtube length 112 mm 112 mm 112 mm 112 mm
Reach 430 mm 450 mm 475 mm 500 mm
Stack 632 mm 632 mm 632 mm 632 mm

Specs

Frame Summum MX 6061 Alloy Stealth Evo, Mullet, hydroformed tubing, Zero suspension system, 200mm travel, Forward Geometry, alloy upper link with shock eyelet bearings, SuperBoost 12x157mm rear axle, 83mm BSA bottom bracket, MAX. capacity dual row Enduro bearings, HHG internal cable routing, ISCG 05. *Optional Geometry kit
Fork Fox 40 29 Float GRIP Performance, 203mm, air spring, 1-1/8” steerer tube, 20x110mm axle, offset 52mm. Settings: 3-pos compression dial, air preload
Rear Shock Fox DHX2 Performance Elite, 225x70mm. Settings: low-speed compression, low-speed rebound, spring preload. Trunnion top mount, 30x8mm bottom bushings
Rims Mavic Deemax BikePark 29, 30mm internal width, 32 holes
Hubs Front: Mavic Boost 20x110mm, IS 6 bolts
Rear: Mavic 12x157mm, ID360 freewheel, sealed bearings, IS 6 bolts, HG freehub
Spokes Mavic 32 steel flat spokes
Tires Front: Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead
Rear: Maxxis Dissector 27''5x2.4 WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead
Bottom Bracket SRAM DUB BSA, sealed bearings, 83mm
Crankset SRAM Truvativ Descendant DH, DUB axle, Direct mount chain ring, 165mm CL 56´5
Chainrings 34T, steel, X-SYNC
Shifters SRAM trigger GX DH 7s, X-actuation 1:1
Front Derailleur e*Thirteen Vario Compact Upper Slider ,Alloy backplate ,DMB (Direct mount Bashguard) Lower Slider 34-36t, ISCG 05 adjustable upper slider
Rear Derailleur SRAM GX DH, 7s, medium cage
Cassette/Freewheel SRAM PG 720 11-25T, 7s
Chain SRAM PC1110 11s, Powerlock
Brakes SRAM DB8, oversized 4-piston caliper, Centerline 220/203mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Brake Levers SRAM DB8, tool reach adjust, lever pivot bushings
Handlebars Onoff S3 1.0 6061 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise.
Tape/Grips Onoff Beehive, 1lock-on, 135mm
Stem Onoff S9 DH CNC Integrated, 45-50mm adjustable length, 10mm rise, 31.8mm barbore, 7075 alloy, 2x6mm spacer
Headset Onoff ZS56/ZS56, 1-1/8", 1-1/8" steerer tube, 42x30x7x45ºx45º ACB sealed bearings, geometry kit cups, external diameter 62mm
Seatpost Onoff S3 DH Alloy, diameter 31.6mm, length 300mm
Saddle Ergon SM10 DH Black
Pedals Sold Separately

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Yellow/Black/Silver / Large / 29-inch front / 27.5-inch rear 08435392895026 MO-010-25US103 MON34713452L
