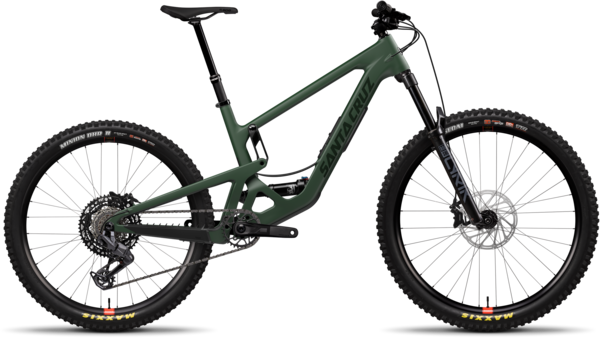

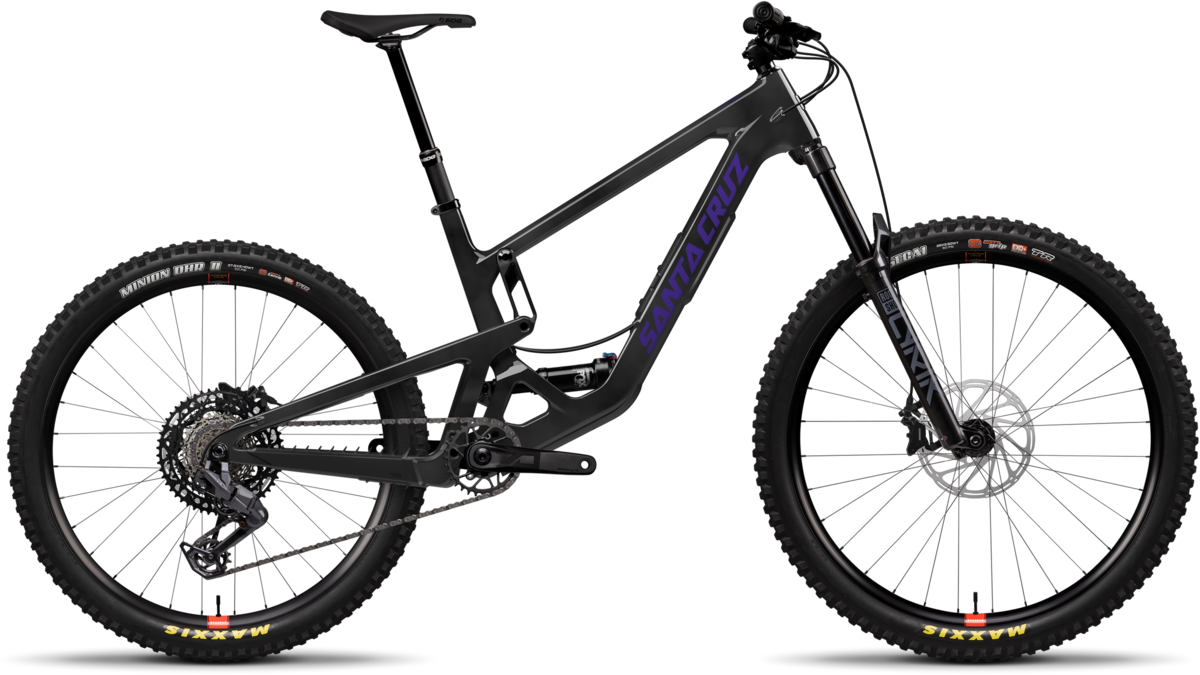

Santa Cruz Bronson 70 - 2026
$4,999.00
Details
When you can only have one bike, and your mission is to ride that bike into oblivion, then this is the one. From manicured bike parks to blown out loamy berms, alpine lines to backyard trails, the Bronson is as at home in the air as it is in the dirt. For the rider with a Peter Pan disposition or who wants to get into a pan flat tabletop position, the Bronson encourages bad behavior.
| Frame Size | Small | Medium | Large | X-Large | XX-Large |
|---|---|---|---|---|---|
| Geometry Position | High/Low | High/Low | High/Low | High/Low | High/Low |
| Reach (mm) | 435/432 | 460/457 | 480/478 | 500/498 | 525/523 |
| Stack (mm) | 623/625 | 632/634 | 641/643 | 659/661 | 668/670 |
| Head Tube Angle | 64.2°/63.9° | 64.2°/63.9° | 64.2°/63.9° | 64.2°/63.9° | 64.2°/63.9° |
| Head Tube Length (mm) | 110 | 120 | 130 | 150 | 160 |
| Rear Center (mm) | 437 | 439 | 442 | 445 | 448 |
| Front Center (mm) | 771 | 800 | 825 | 853 | 883 |
| BB Height (mm) | 344/341 | 344/341 | 344/341 | 344/341 | 344/341 |
| BB Drop - Front (mm) | 29/32 | 29/32 | 29/32 | 29/32 | 29/32 |
| BB Drop - Rear (mm) | 45943 | 45943 | 45943 | 45943 | 45943 |
| Wheelbase (mm) | 1208 | 1240 | 1267 | 1299 | 1331 |
| Top Tube Length (mm) | 572 | 595 | 614 | 636 | 662 |
| Seat Tube Length (mm) | 380 | 405 | 430 | 460 | 500 |
| Seat Tube Angle | 77.6°/77.3° | 77.9°/77.6° | 78.2°/77.9° | 78.3°/78° | 78.4°/78.1° |
| Standover Height (mm) | 721 | 723 | 725 | 727 | 731 |
| Frame Size | Rider Height (cm) | Rider Height (in) |
|---|---|---|
| Small | 154cm-165cm | 5'1"-5'5" |
| Medium | 165cm-175cm | 5'5"-5'9" |
| Large | 175cm-185cm | 5'9"-6'1" |
| X-Large | 185cm-195cm | 6'1"-6'5" |
| XX-Large | 193cm-200cm | 6'4"-6'7" |
Specs
| Frame | Carbon C |
|---|---|
| Fork | RockShox Lyrik Base, 160mm |
| Rear Shock | FOX Float Rhythm, 230x57.5 |
| Rims | Reserve 30|TR AL |
| Hubs |
Front: SRAM MTH 716, 15x110, 6-Bolt, 32h Rear: SRAM MTH 746, 12x148, HG, 6-Bolt, 32h |
| Tires |
Front: Maxxis Assegai 29"x2.5", 3C MaxxGrip, EXO+ Rear: Maxxis Minion DHR II 27.5"x2.4", 3C MaxxTerra, EXO+ |
| Bottom Bracket | SRAM DUB 73mm MTB Wide BB |
| Crankset | SRAM 70 Eagle DUB T-Type Crankset, 32t |
| Shifters | SRAM 90 Eagle T-Type, 12spd |
| Rear Derailleur | SRAM 70 Eagle T-Type, 12spd |
| Cassette/Freewheel | SRAM XS 1270 Eagle T-Type, 10-52t |
| Chain | SRAM 70 Eagle T-Type, Flattop, 12spd |
| Brakes | SRAM DB8 |
| Rotors | SRAM Centerline, 200mm |
| Handlebars | Burgtec Alloy Bar -or- e13 TRS Base Bar |
| Tape/Grips | Santa Cruz Bicycles House Grips |
| Stem | OneUp Enduro Stem, 42mm -or- e13 TRS Base Stem, 40mm |
| Headset | Cane Creek 10 IS Integrated Headset |
| Seatpost | SDG Tellis Dropper, 31.6 |
| Saddle | SDG Bel-Air V3, Steel |
| Pedals | Sold Separately |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Matte Poblano Green / Medium / 29-inch front / 27.5-inch rear | 192219513669 | 58-26313-451-3-905-132801 | SAN297322150 |
